Shop Draw-Tite Trailer Hitches In Canada
What you get from the trailer hitch you choose is what you seek in the first place. If a towing apparatus is all you want and you’re ready to give up on maneuverability, then there are simpler models. On the other hand, if you seek trailer hitches designed and engineered just for your vehicle model, you’ve got to be specific. That includes knowing the basics of towing as it’ll help you pick up the right one.
A lot depends on the load. You’ve got to take into account the fact that greater load brings greater on-road challenges. In the absence of proper equipment, you may have to compromise on speed and there’s always a fear of rear end collision in case of sudden braking.
Intelligent towing components.
Draw-Tite, one of the pioneers of trailer hitches in North America, has engineered innovative trailer hitch designs. You can find these at Parts Engine for lowest available prices, plus free shipping. The most popular models include:

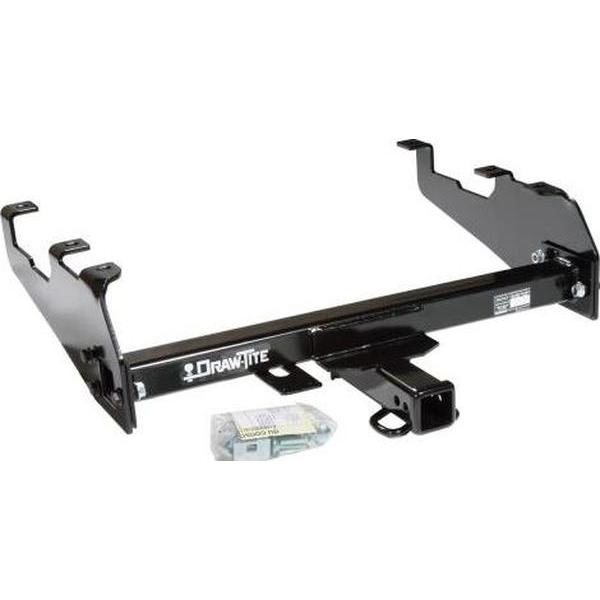

- Draw-Tite Rear Mounted Trailer Hitches: Analogous with Curt’s Receiver Hitches, these are mounted on the rear end of the towing vehicle. Solid all-welded construction ensures optimal strength and durability throughout use. No welding needed for installation. Just bolt in and you’re ready to go. Depending upon the gross towing weight and width of the receiving aperture, it’s of following different types:.
- Class I Sportframe Trailer Hitch: Exceptionally beautiful and tough, this high performance and light weight trailer hitch custom fits to your vehicle owing to its Computer Aided Design (CAD). It has a 1 ¼” square receiver tube opening and can carry up to 2,000 lbs. as Gross Towing Weight (GTW).
- Class II Frame Trailer Hitches: It’s ‘Tested Tough’ which means it exceeds industry strength standards. It has a square 1 ¼” receiver aperture and a GTW capacity of about 3,500 lbs.
- Class I/II Invisi-Hitches: It’s meant to be invisible when not in used for towing. Components include Invisi-Hitch Ball Drawbar Mount designed exclusively for Invisi-Hitches. These are rated for a Tongue Weight (10% of GTW) of 200 lbs. and Gross Towing Weight of 2,000 lbs.
- Class III/IV Square & Round Tube Max-Frame Trailer Hitches: Custom build as per the towing vehicle, it works best with heavy load carrying pickups, vans, and SUVs. It has a 2” square receiver tubing and a GTW capacity of 8,000 lbs. which is expandable to 12,000 lbs. by using it with a weight distribution (WD) system.
- Class III/IV Max-E-Loader Trailer Hitches: Compatible with WD system, it’s one of the preferred solutions for heavy-weight towing. Rated up to 6,000 lbs. without WD and up to 12,000 lbs. with WD system.
- Class V Ultra Frame Trailer Hitches: Apt for marine and commercial application, Class V Ultra Frame Trailer Hitches are designed for vehicles with long wheel base and heavy-duty suspension. Having a 2” receiver tubing, it’s rated for 15,000 lbs. GTW capacity without WD system and 16,000 lbs. with Weight Distribution.
- Draw-Tite Front Mounted Trailer Hitch: Front mounted trailer hitch lets you carry a number of accessories on the front side of your vehicle. These no-weld hitches can be installed with simple bolting. It has a 2” receiver opening to allow tethering.
- Draw-Tite Adjustable RV Trailer Hitch: These hitches are installed into RV frame and designed for RVs exclusively. It has a 2” square receiver aperture, GTW of 5000 lbs. without WD system and 6000 lbs. with WD system.
- Draw-Tite 30K Remov-A-Ball Under-Bed Gooseneck Hitch: It requires installation of a vehicle-specific rail kit that provides attachment to any over-bed gooseneck hitch you may want to use. It’s rated for 30,000 lbs. of GTW capacity.
- Draw-Tite 30K Hide-A-Goose Under-Bed Gooseneck Hitch: It requires installation of vehicle-specific rail kit and comes with a magnetic cover to protect ball hole when not using. It’s rated for 30,000 lbs. of GTW.
- Draw-Tite 25K Fold-Down Under-Bed Gooseneck Hitch: It’s a smart hitch that allows full use of pickup bed owing to the fold-down design. It’s rated for 25,000 lbs. of GTW.
More advanced hitches and weight distribution systems are being designed to make towing more safe, stabilized, and convenient. Draw-Tite is one such innovator that strives to make towing more fun and less cumbersome for people all over the world.
)
)
)
)
)
