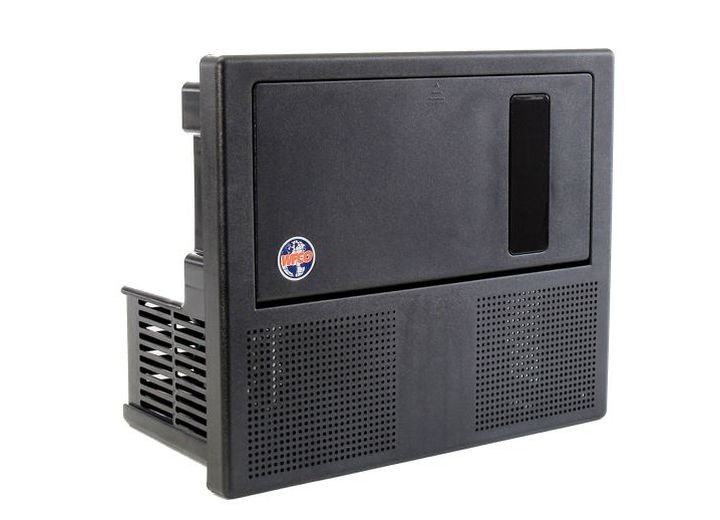

Wfco Technologies 8900 Series Power Converter Wf-8945-Ad

  Universal Fit Product.

Product Description

Revolutionized RV power centers with its lighter weight, decorative doors, and superior features. The WF-8945 model provides 45 Amps and a clean, constant 13.6 VDC nominal output, for reliable operation of electronics and appliances. Automatic three-stage charging extends the life of your battery with output voltage modes of 13.2 VDC range “float” mode, 13.6 VDC range “absorption” mode, and a 14.4 VDC range “bulk” charge mode. The 8900 Series also maintains peace and quiet, as the cooling fan runs only when needed. FCC Class B compliance for every power center model means that the units are designed not to cause interference with televisions, radios, or other signals. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions, protecting the life of your power center and electrical system. 8900 Series models provide AC and DC distribution with innovative features. They can accommodate a 30 Amp main AC circuit breaker and up to five branch circuits. Eleven-branch DC circuits are available with LED bulbs for each DC circuit to illuminate and identify open circuits.

Features & Benefits

Automatic Three-Stage Charging Extends The Life Of Your Battery With Output Voltage Modes

Electronic Current Limiting Automatically Shuts Down Power During Overload Or Short-Circuit Conditions, Protecting The Life Of Your Power Center And Electrical System

FCC Class B Compliance For Every Power Center Model Means That The Units Are Designed Not To Cause Interference With Televisions, Radios, Or Other Signals

Provides AC And DC Distribution With Innovative Features

Limited 2 Year Warranty

Attributes

Converts: 105-130 Volt AC To 13.2-14.4 Volt DC
Continuous Output Power: 610 Watt
Peak Output Power: 770 Watt
Ampere Rating: 45 Amp
Number Of Outlets: 1
Efficiency: 80 Percent
Length: 8-1/2 Inch
Width: 14-1/4 Inch
Height: 11-3/4 Inch
Remote On/Off Capable: No
With Volt/Watt Meter: No
With Short Circuit: Yes
With Reverse Battery Protection: Yes
With Thermal Protection: Yes
With Built-In Charger: Yes
With Fuse: No
